Block diagrams of the Station


Honeysuckle’s John Saxon has created these block diagrams of the main Apollo-related systems at Honeysuckle Creek, Tidbinbilla and Parkes.


Honeysuckle block diagram

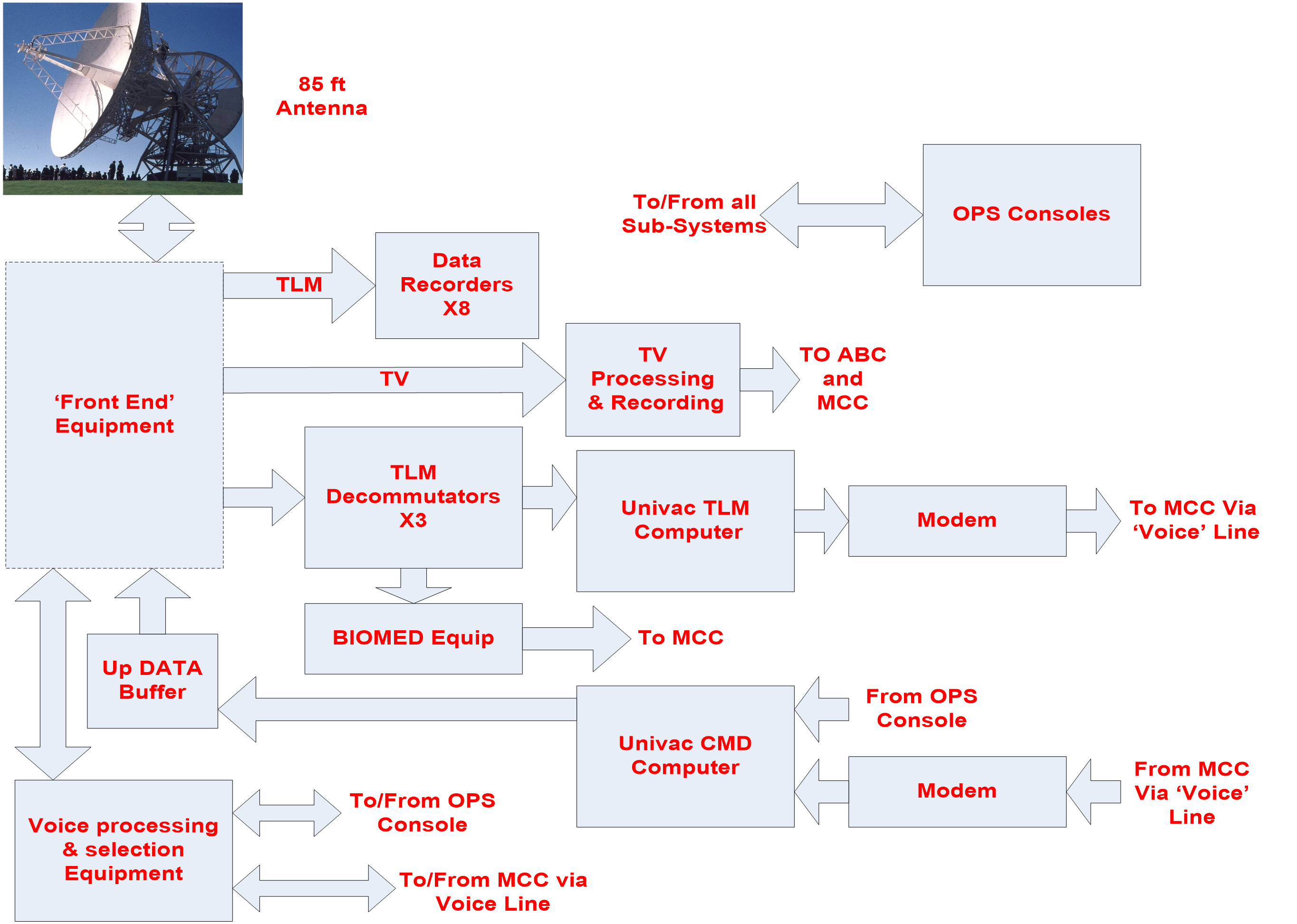

An overall block diagram of Honeysuckle Creek.

Honeysuckle front end

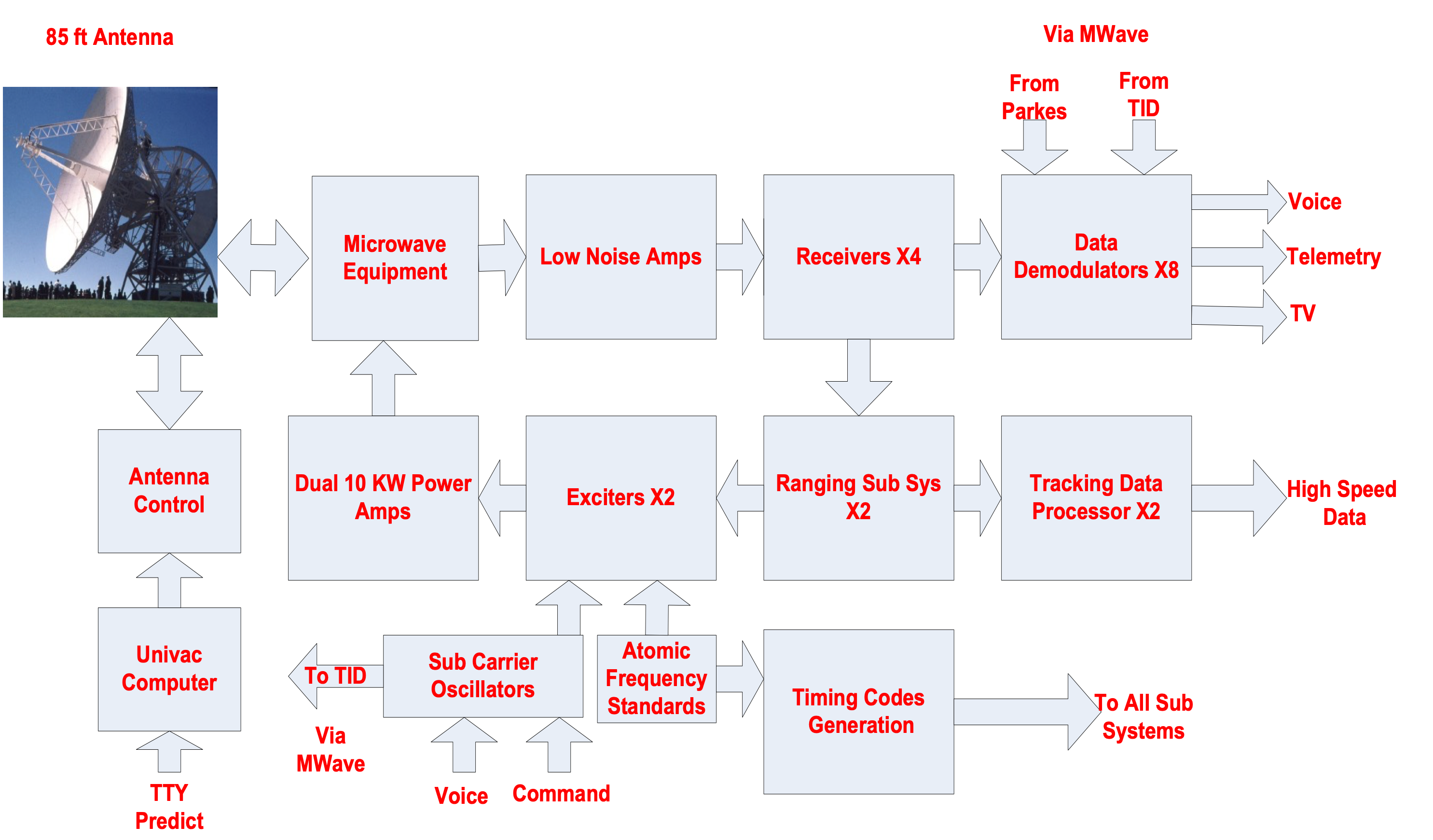

The “Front End” equipment at Honeysuckle Creek.

Tidbinbilla

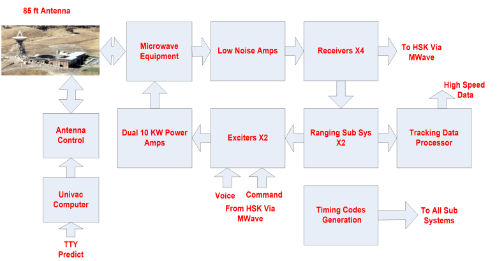

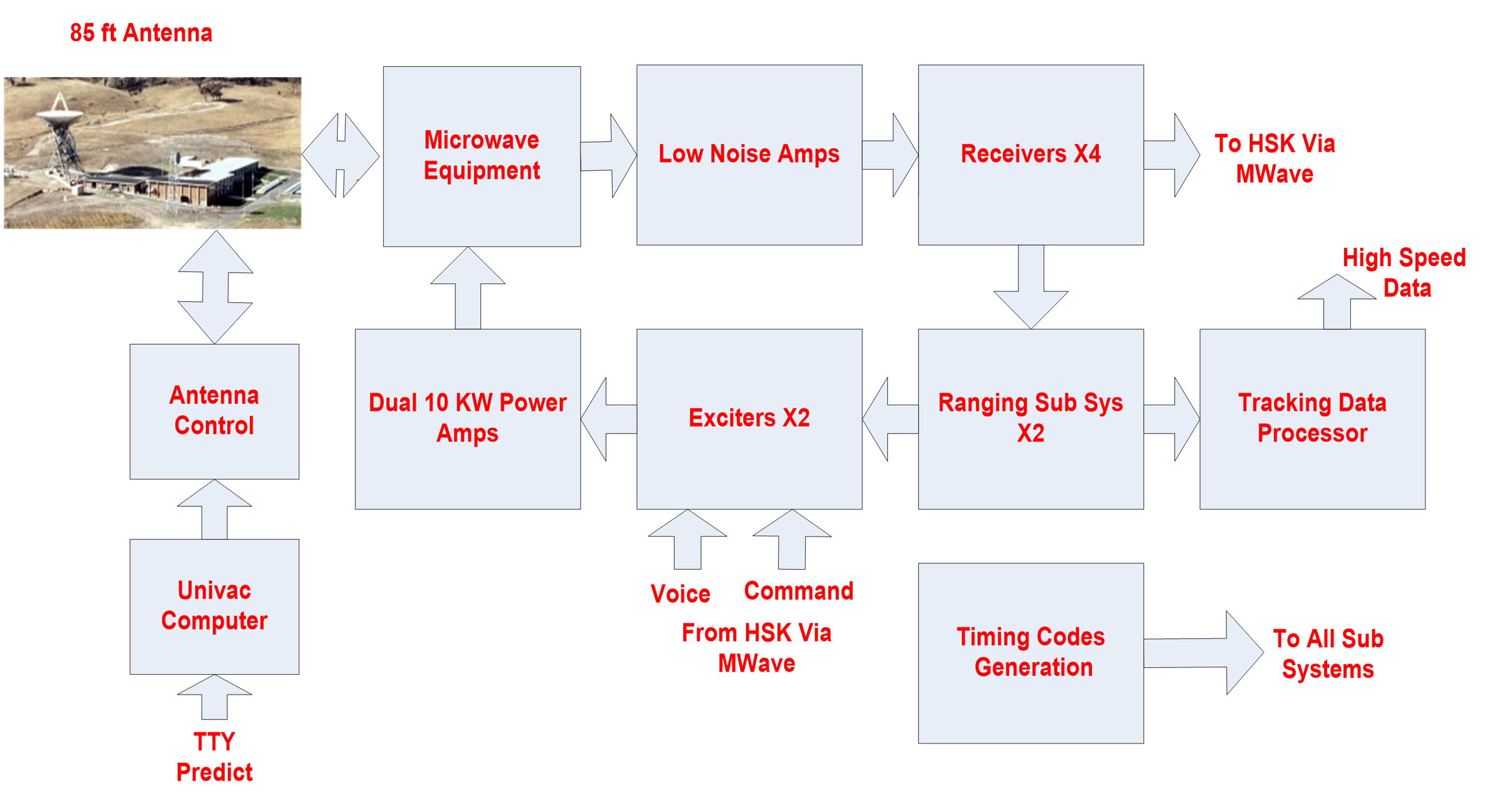

Honeysuckle’s Wing – Tidbinbilla.

Parkes

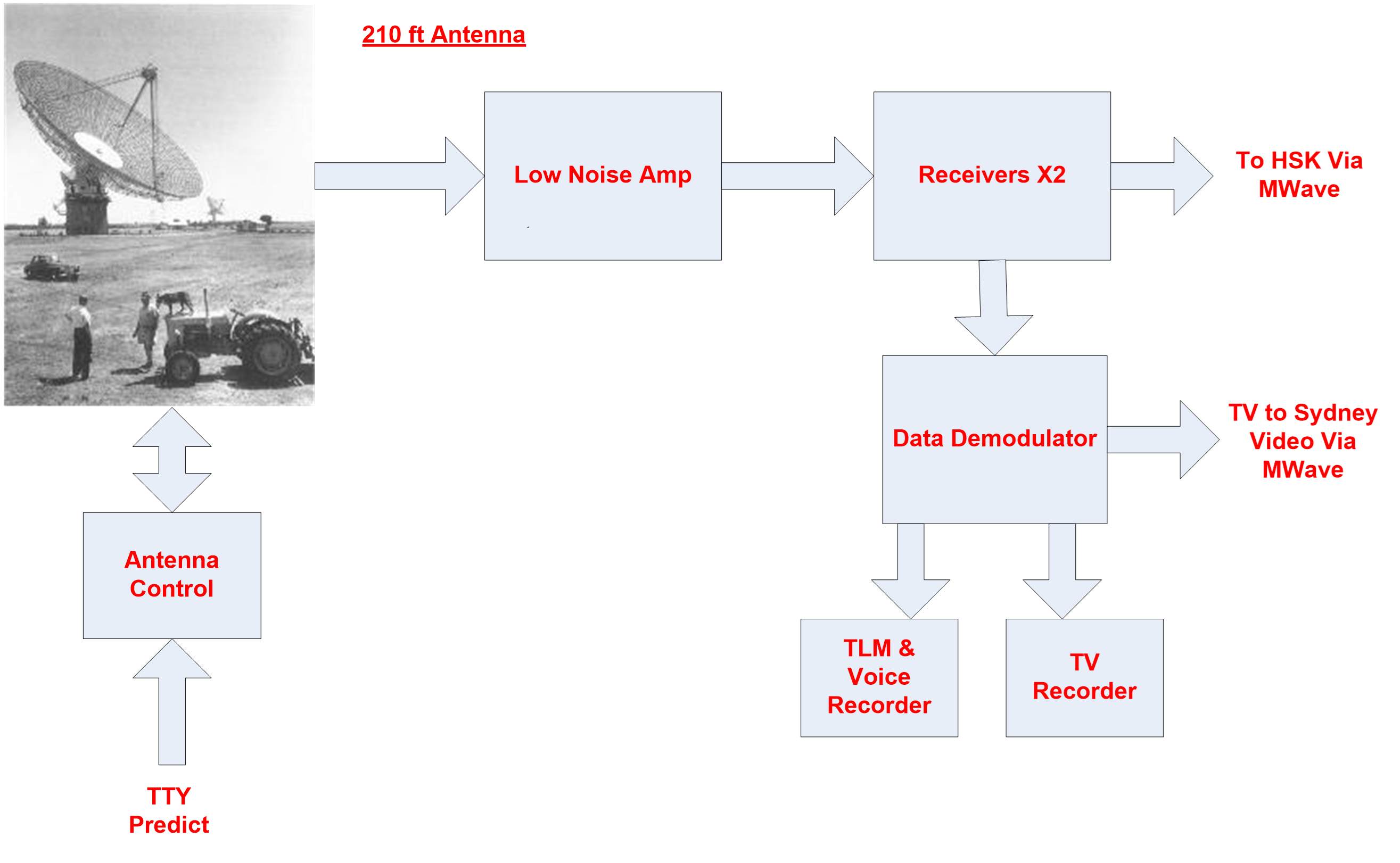

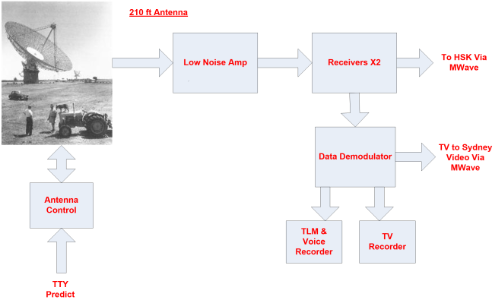

The Parkes Radio Telescope.
