In the lead up to the Apollo 11 mission, there was tremendous interest in the roles to be played by the Australian tracking stations.
Here are some of the many photos taken at Honeysuckle Creek.
In order to minimise disruption to operations at the station, Deputy Station Director Mike Dinn suggested to Station Director Tom Reid that a “Media Day” be held, and that any interested media could take photos on that one day.
The photos below were taken by a photogapher for the Australian News and Information Bureau – probably all on Friday 11 July 1969, just five days before the launch of Apollo 11. This seems to have been the “Media Day”.
Prints from the Australian News and Information Bureau were distributed to the media with a request stamped on the back to “please acknowledge” the source.
This batch of photos below, by the Australian Information Bureau, was preserved and scanned by the National Archives of Australia. (Image numbers are those assigned by the NAA.) The photographer took two sets of photos – one colour, and one black and white.
Many thanks to Bec Bigg-Wither who obtained these images to share.
Image adjustment and descriptions added by Colin Mackellar.
To help understand the context of these photos, see Bryan Sullivan’s (Apollo era) Profile of Honeysuckle Creek in the Station section.
See also the plan of the Ops Building.
|
Image 11896214.
At Honeysuckle Creek’s Operations Console, Deputy Station Director Ian Grant, Station Director Tom Reid and Operations Supervisor Ken Lee review preparations for the imminent Apollo 11 mission.
The UTC (Universal Time) display in front of Ken Lee reveals that this was taken at 7:15pm and 41 seconds on Friday 11th July (i.e. Day of Year 192). The 24-hour analogue clock on the right above the console shows Australian Eastern Standard Time. The clock to the left of that shows US EST (the time at the Goddard Space Flight Center in Greenbelt, Maryland).
|
|

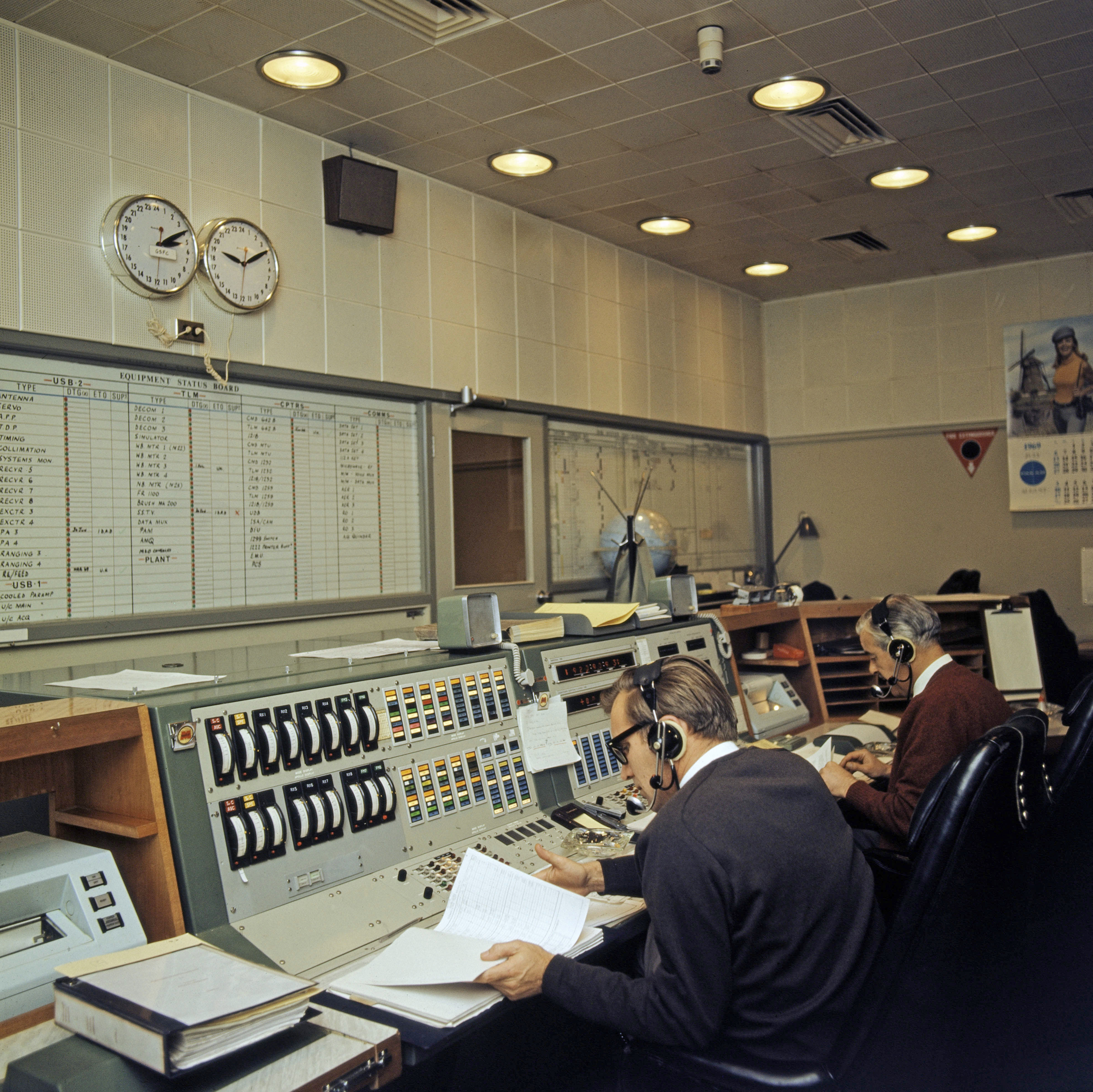

Image 11896251.

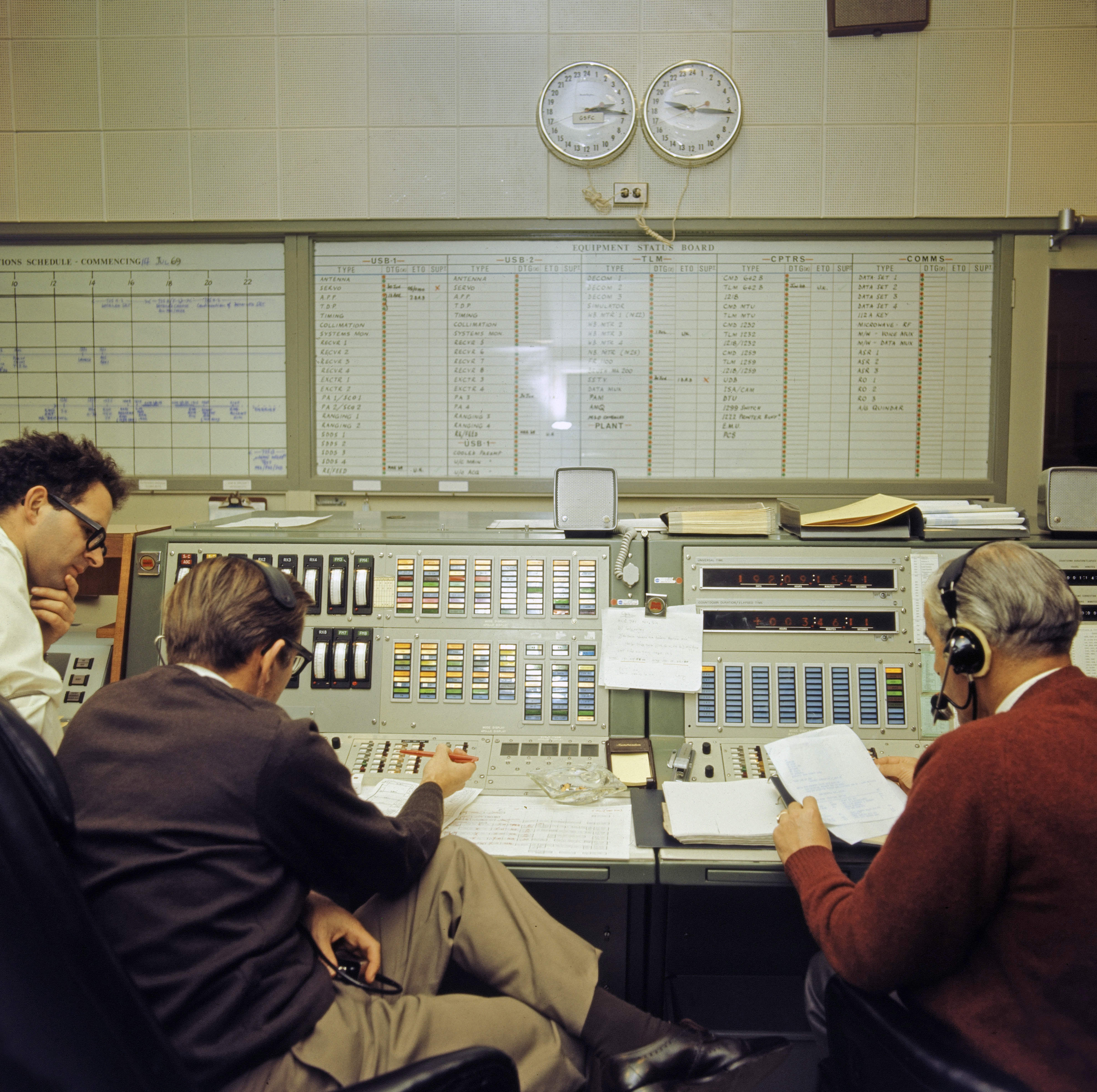

This photo taken a few minutes earlier shows Tom Reid and Ken Lee at the Operations Console.
|
|
Image 11664009.

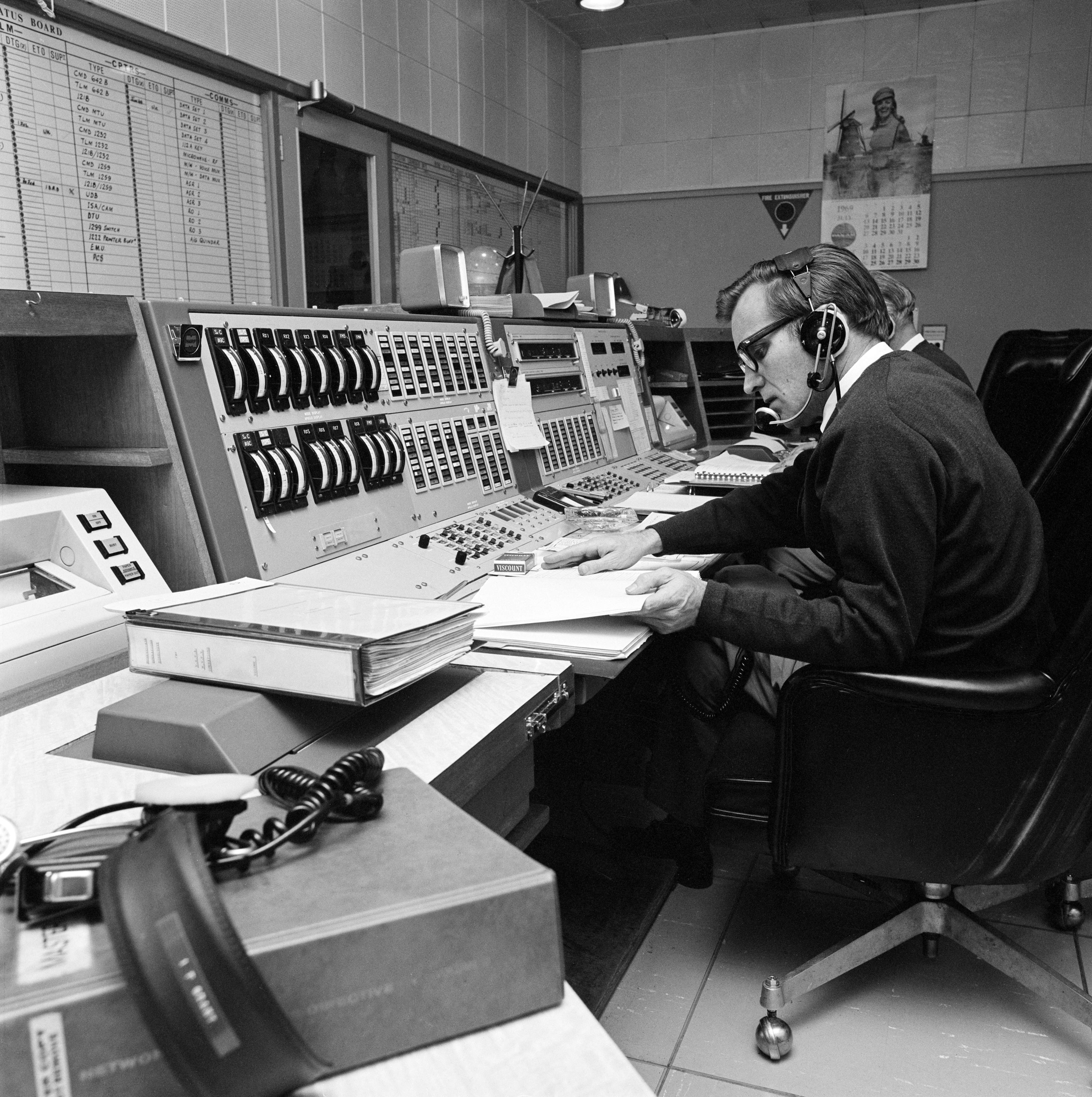

Tom Reid and Ken Lee (obscured) at the Operations Console.
Note Ian Grant’s headset in the foregound, resting on one of the volumes of the Network Operations Directive. The simplifiied HOD (Honeysuckle Operations Directive) is the next ring-binder away from the camera.
|
|

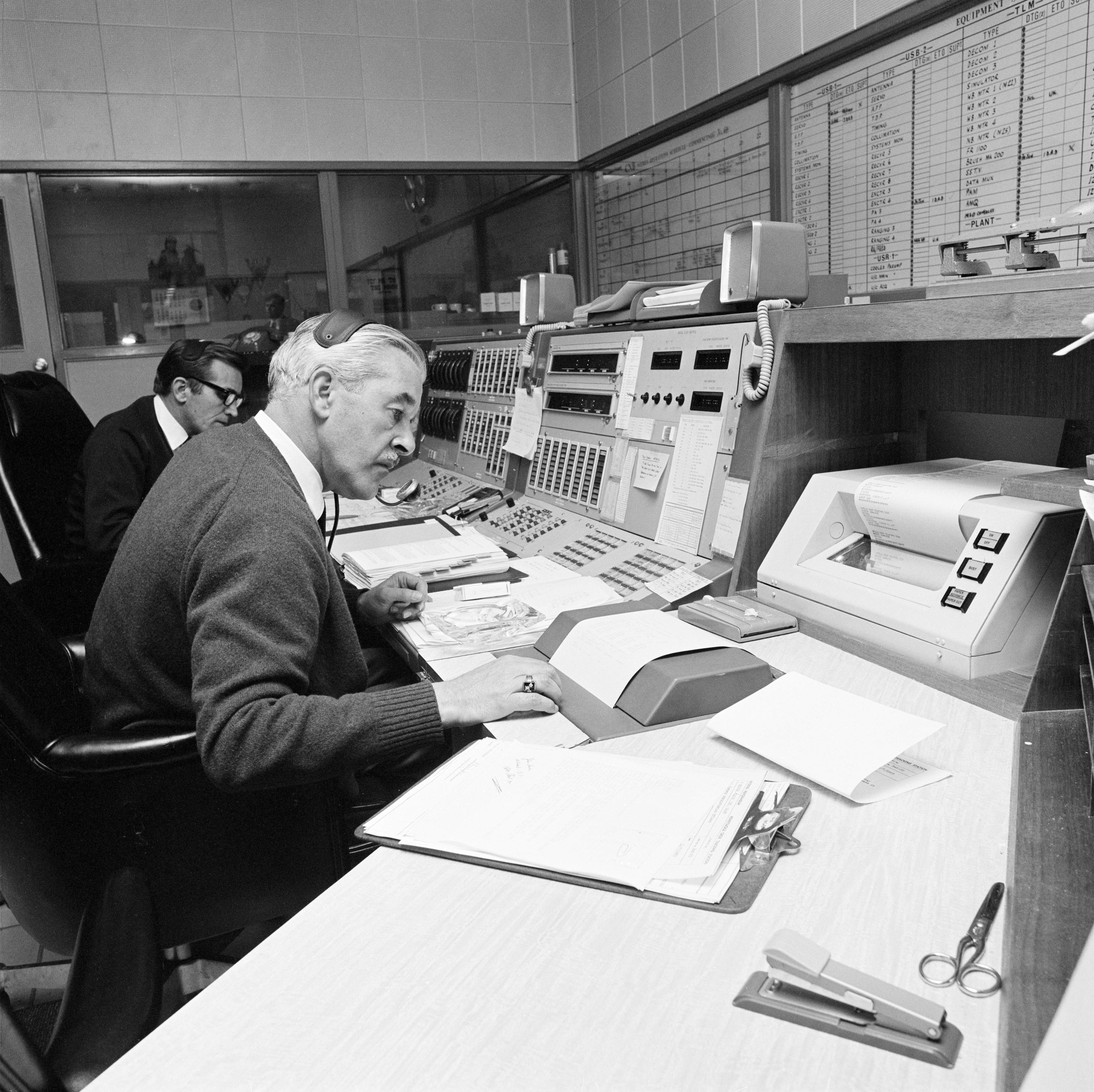

Image 11664005.
Ken Lee and Tom Reid at the Operations Console.
|
|

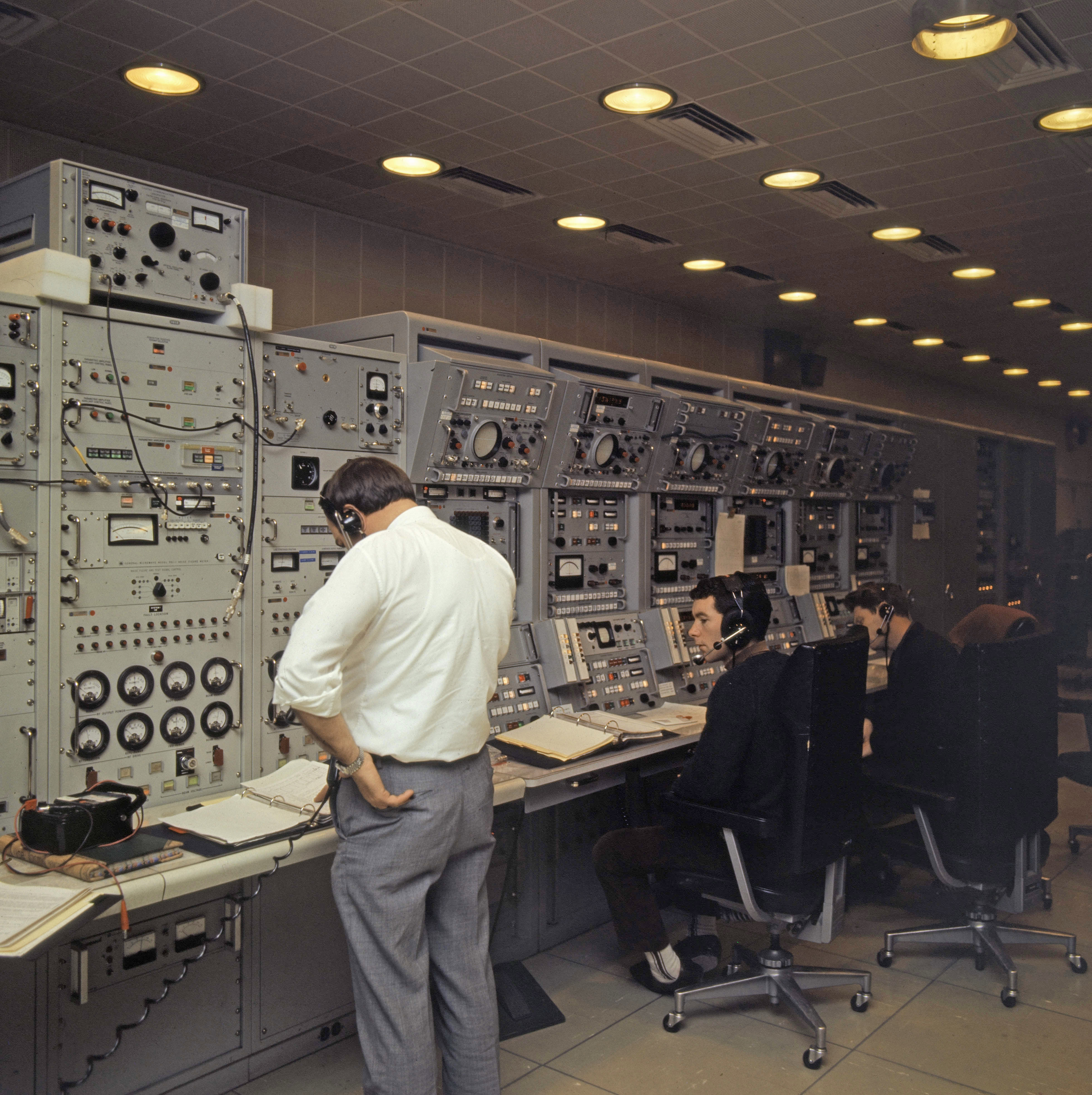

Image 11896250.
Len Litherland (standing at the controls of the two 20kW S-band Power Amplifiers) and Mike Linney and Col Cochran at the Receiver-Exciters.
|
|
Image 11896206.

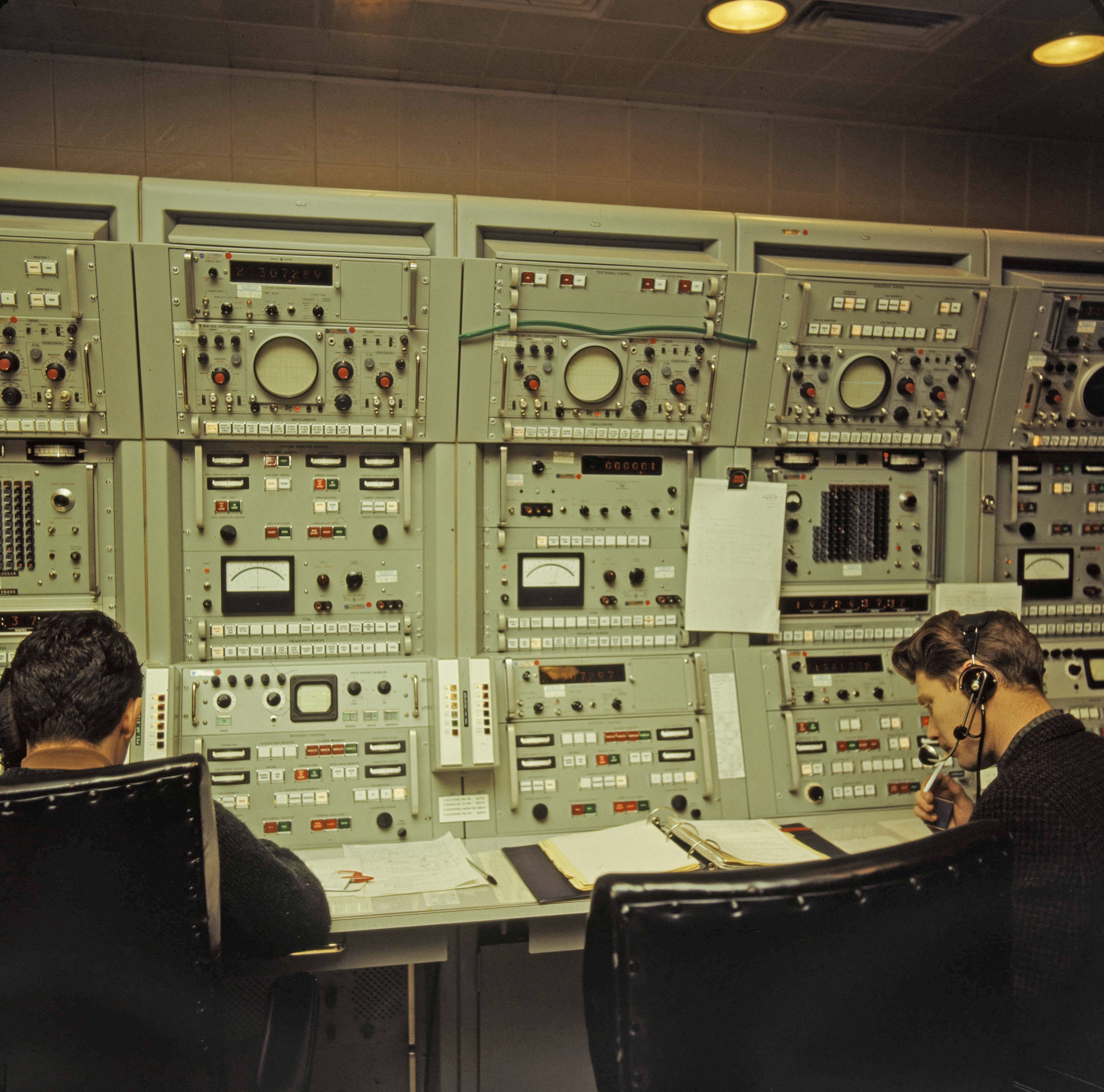

Receivers: Mike Linney at left and Col Cochran at right.
|
|

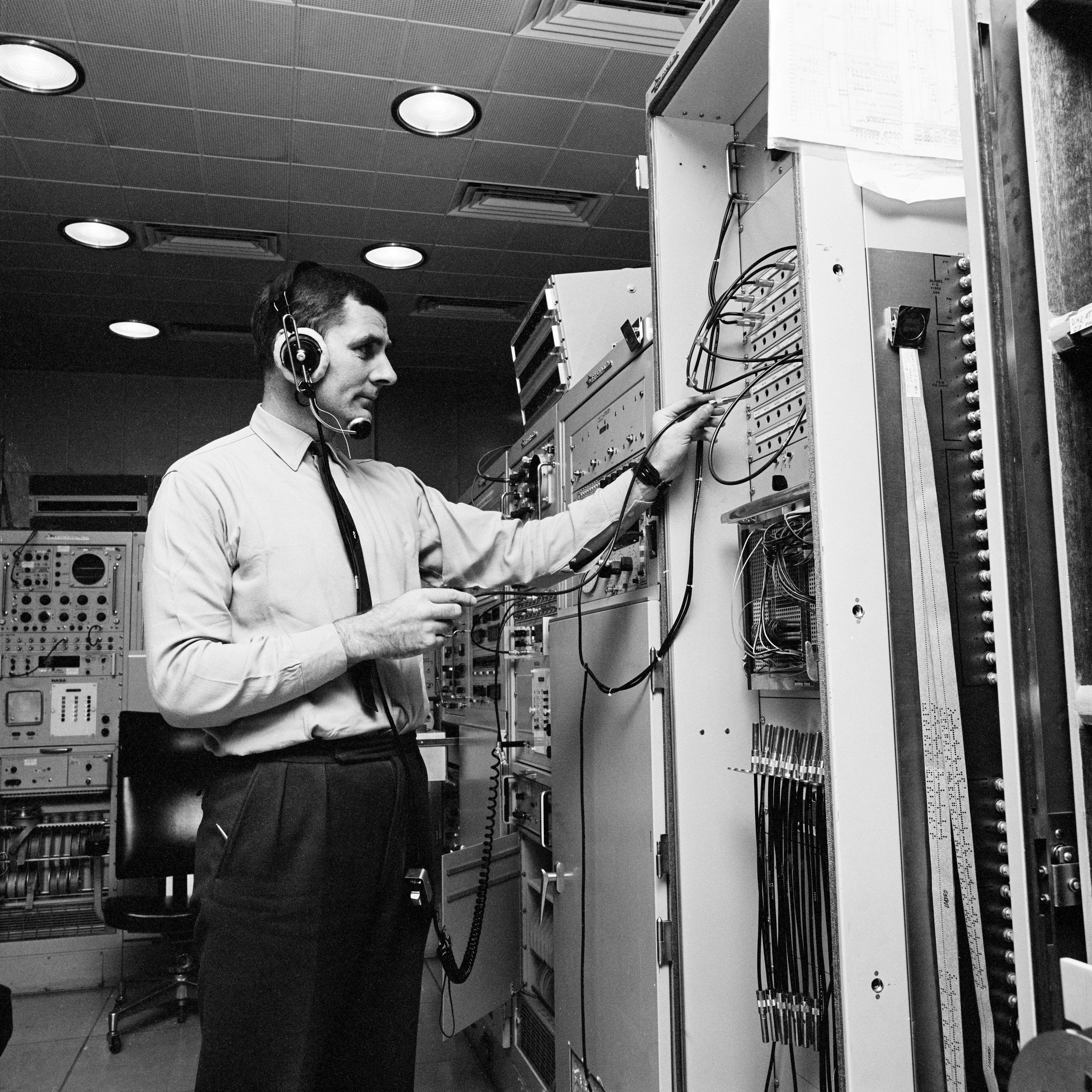

Image 11428202.
Jim Hanlon in the Telemetry area, at the patch panel of one of the Decoms.
|
|
Image 11896212.

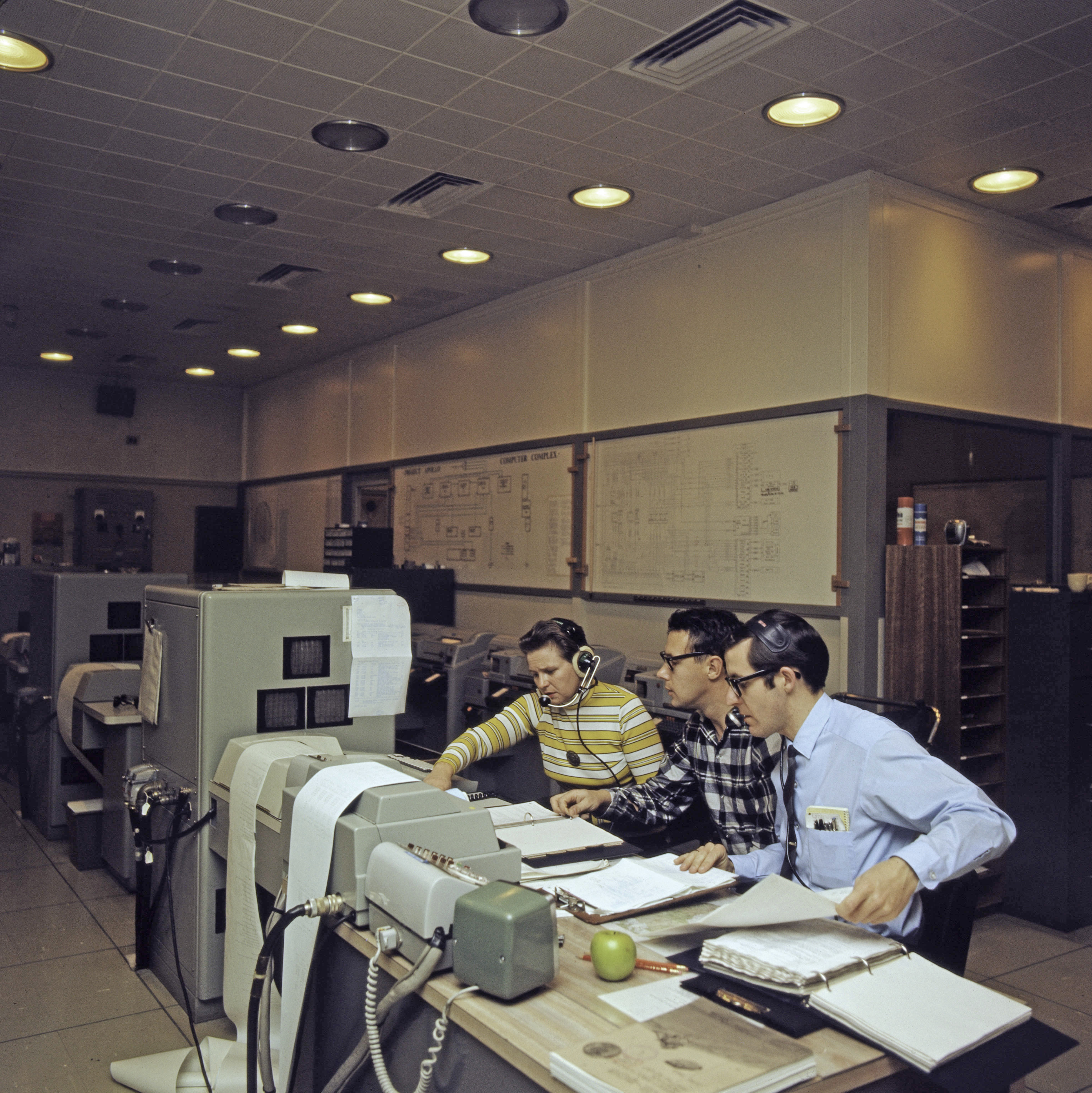

Computers: Operator “Kit” Kitsopea, Ron Chivers, Bryan Sullivan.
The Operations Console is in the room behind them, with posters covering the windows into the computer section.
On the desk, closest to camera, is a green Western Electric 102C speaker connected to the 112A intercom system.
|
|
Image 11664006.

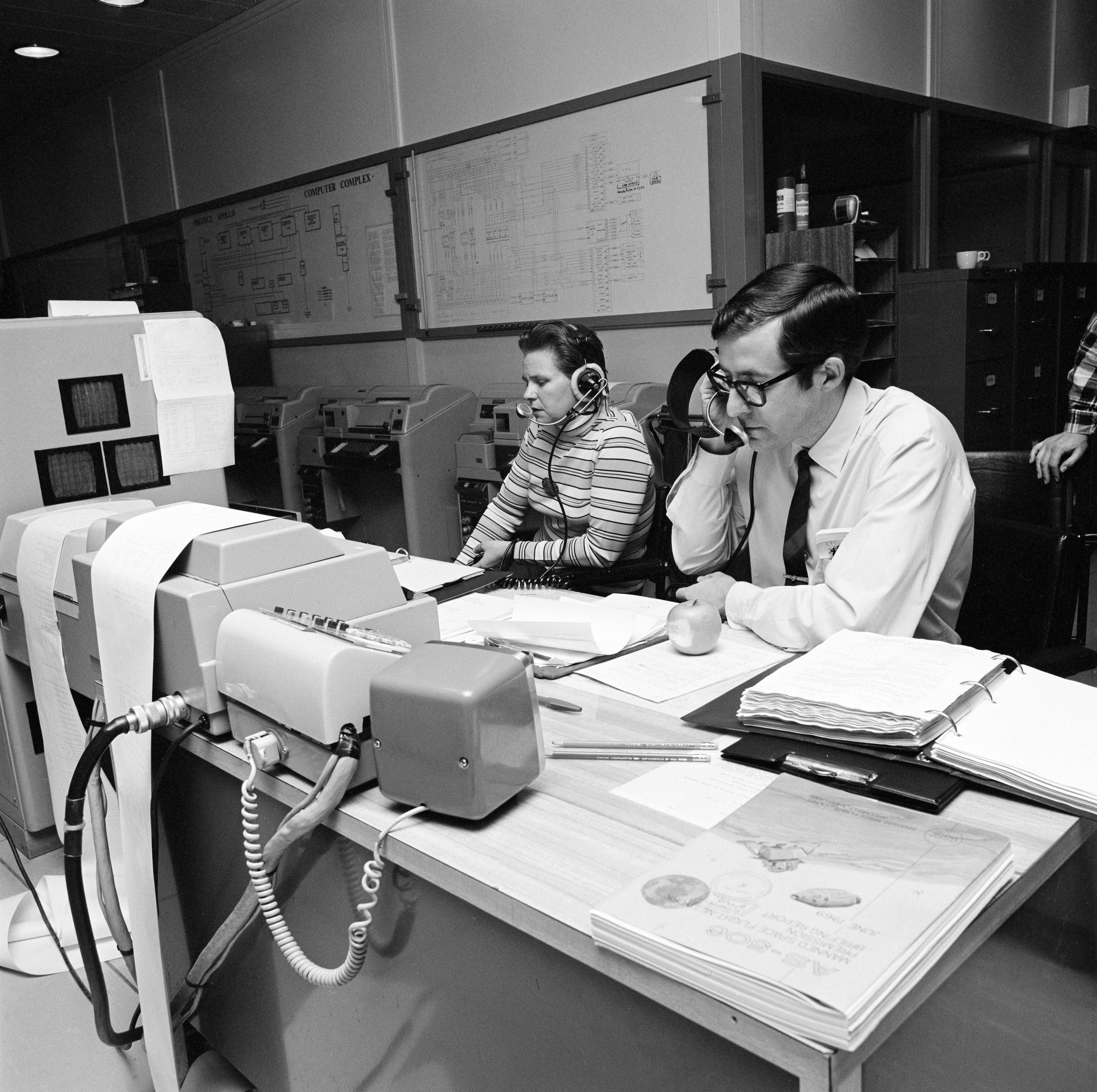

Kit Kitsopea and Bryan Sullivan in the computer section.
The Manned Space Flight Network’s Premission Briefing Report
for AS-506 (i.e. Apollo 11) is on the desk closest to the camera.
Bryan has started his apple.
|
|

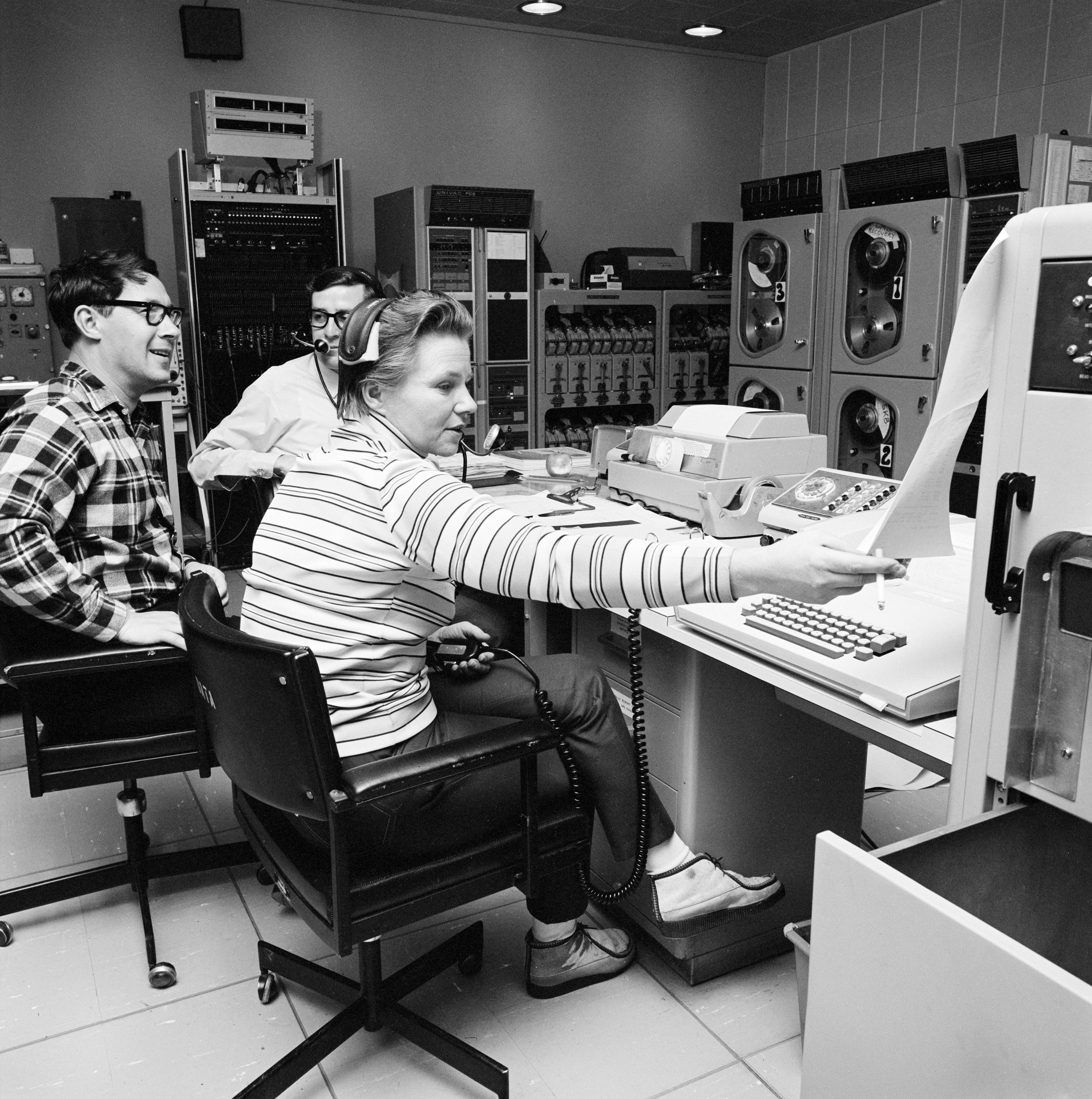

Image 11664000.
Ron CHivers, Bryan Sullivan and Kit Kitsopea in the computer section.
|
|
Image 11896209.

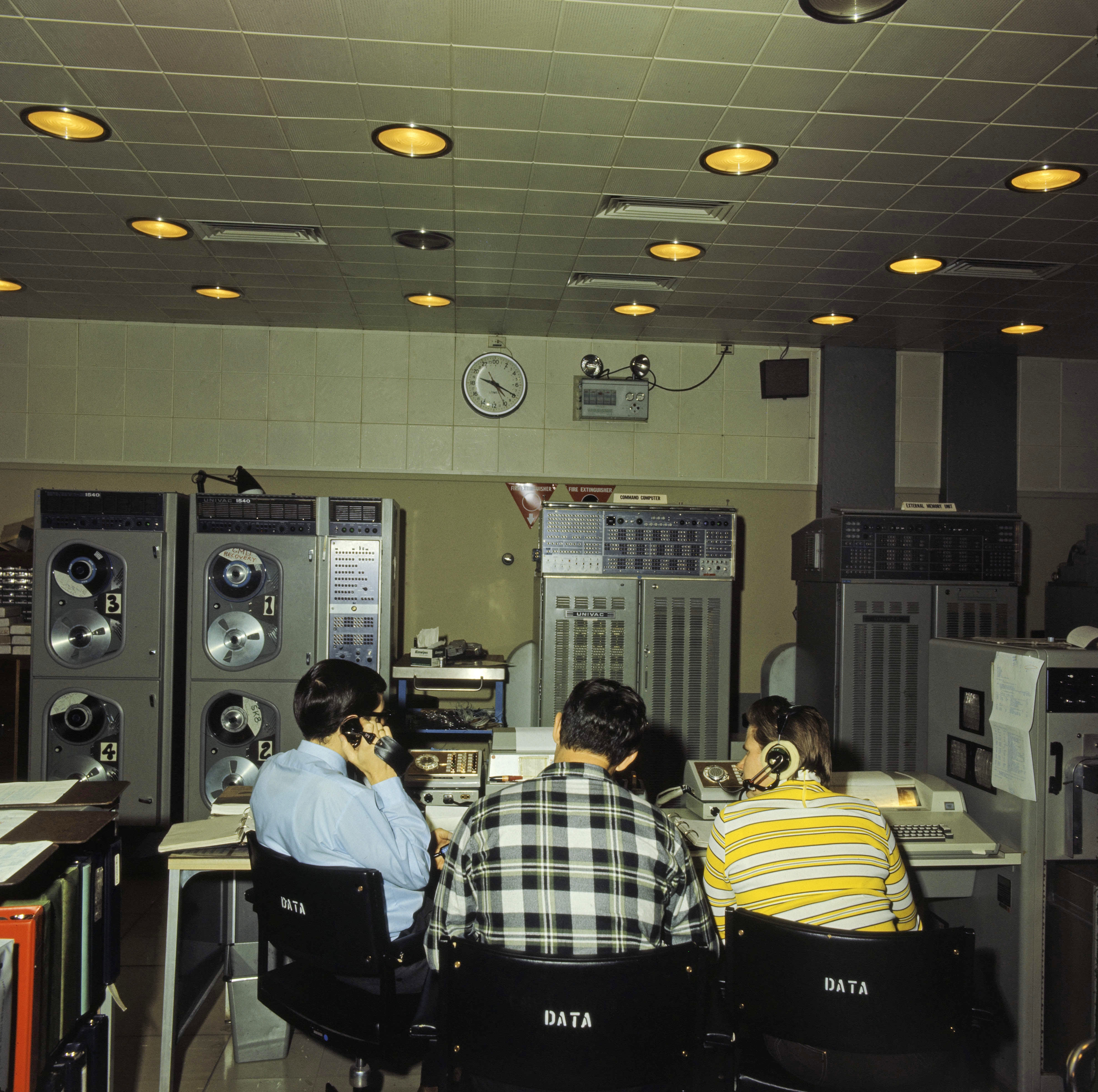

Computers: Bryan Sullivan, Ron Chivers, “Kit” Kitsopea.
|
|
Image 11896211.

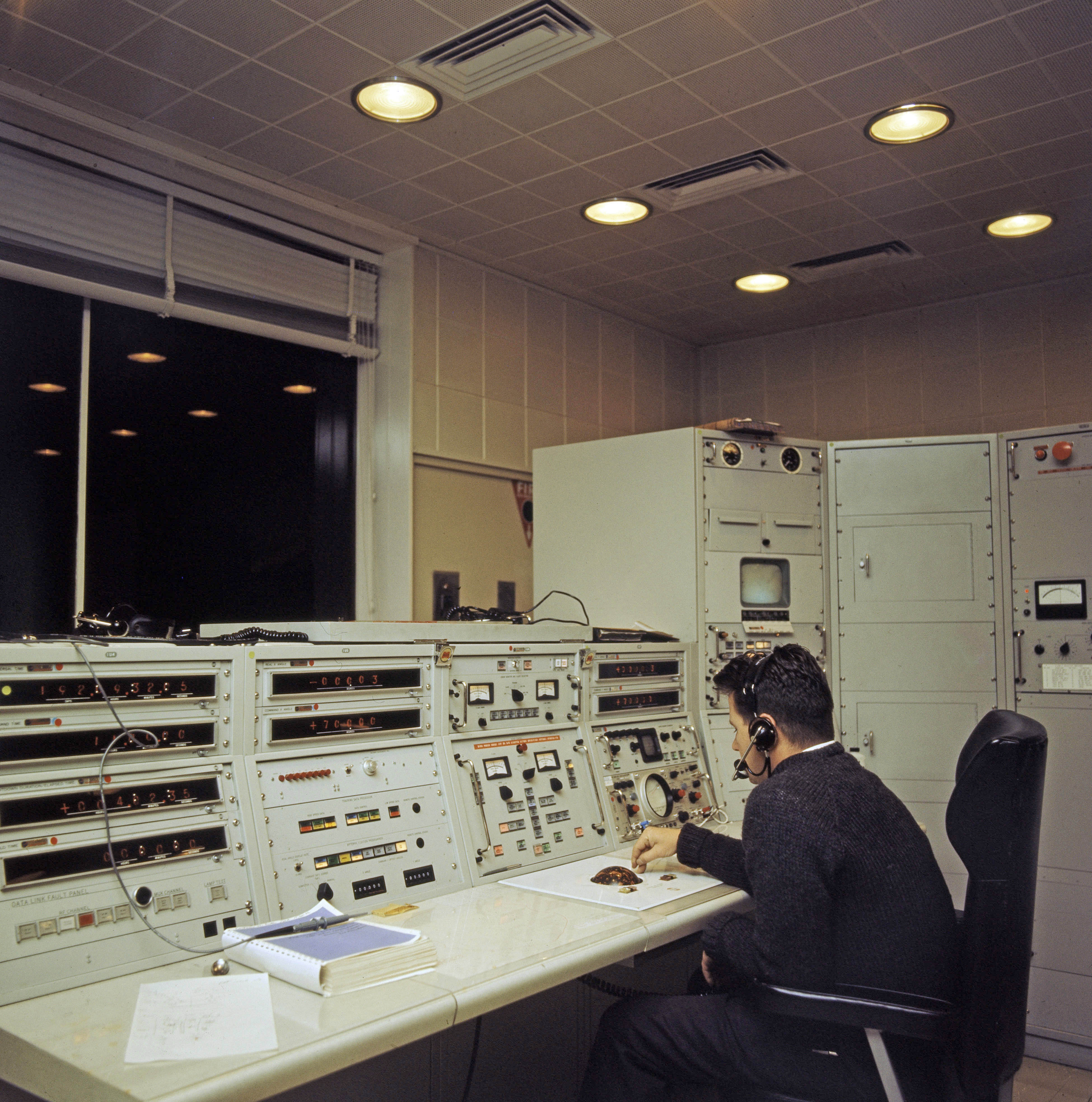

Servo Console – Paul Mullen.
|
|
Image 11428199.

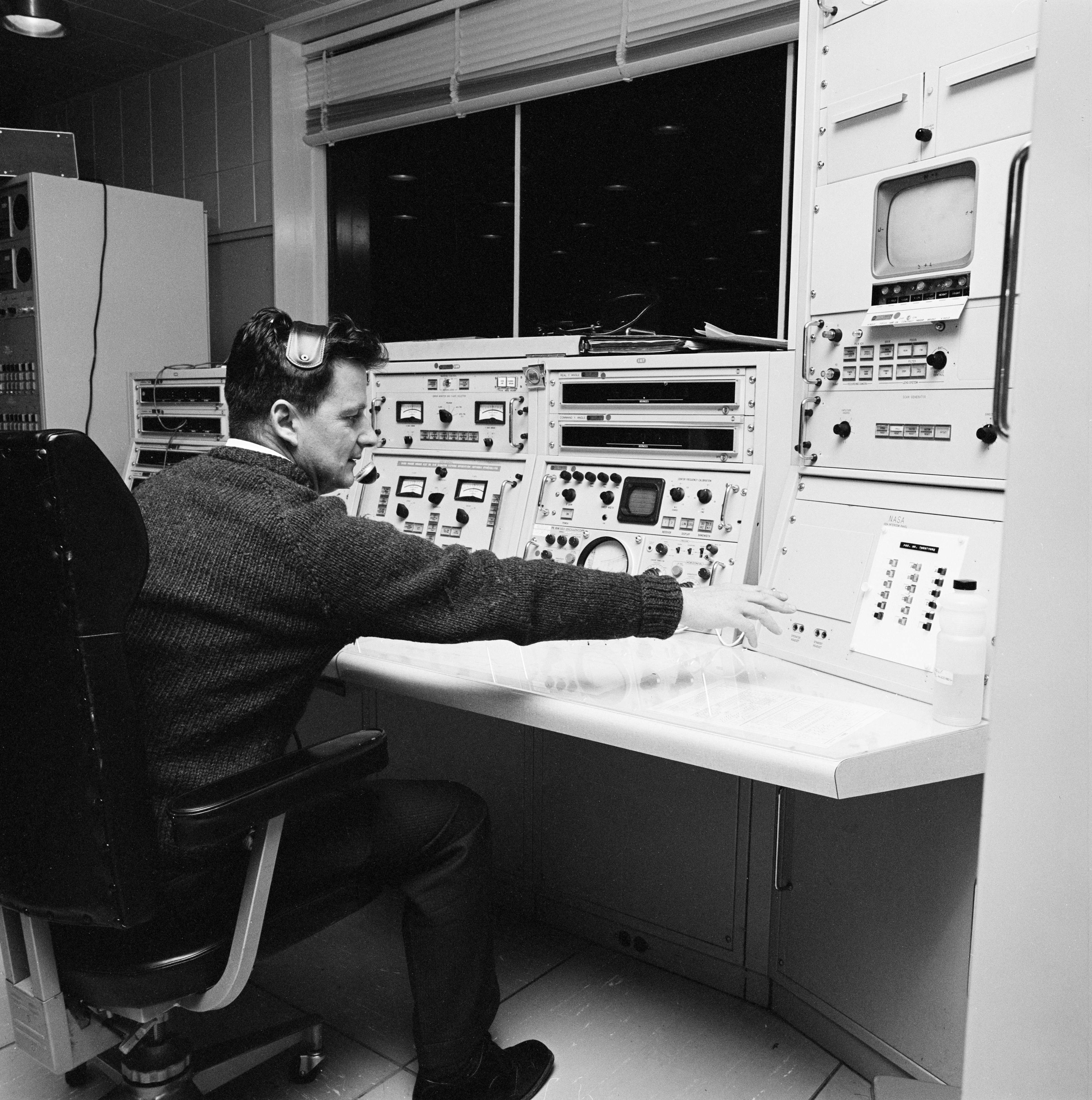

Servo Console – Paul Mullen.
|
|
Image 11896213.

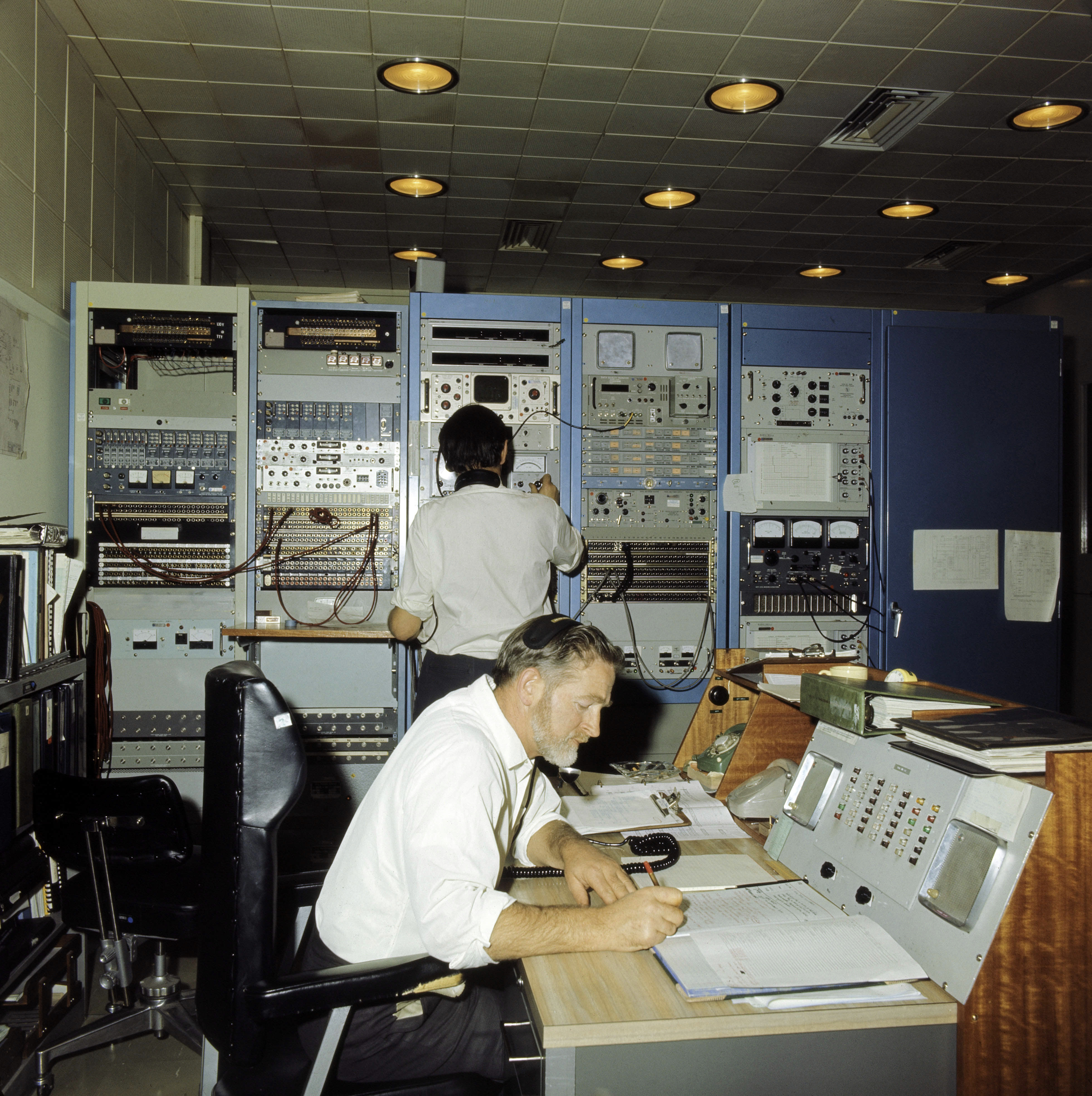

Keith Hiscock (seated) and Fred Hill at the low speed testing rack in the Comms Centre.
|
|
Image 11664012.

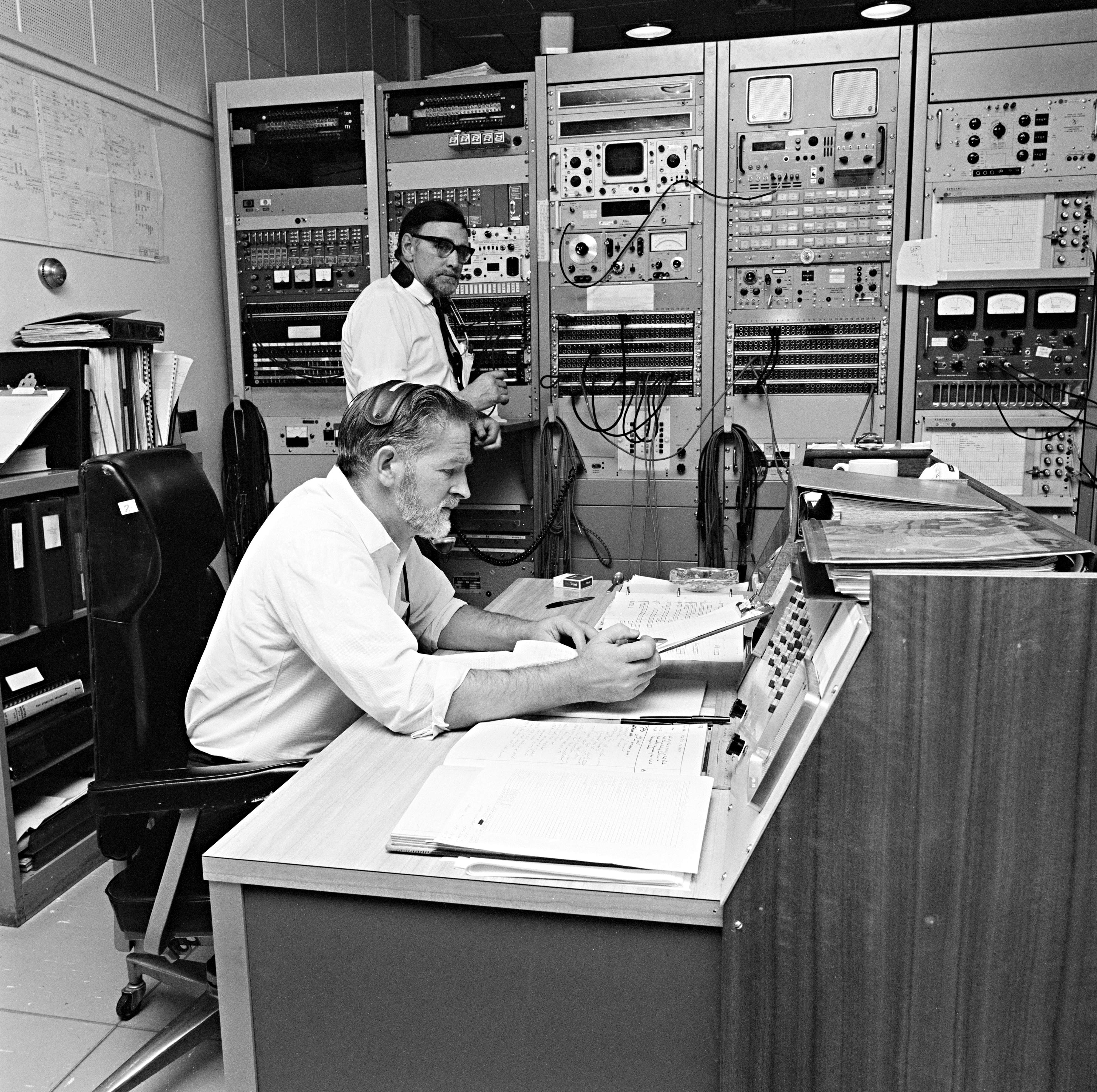

Keith Hiscock (foreground) and Fred Hill at the low speed testing rack in the Comms Centre.
|
|

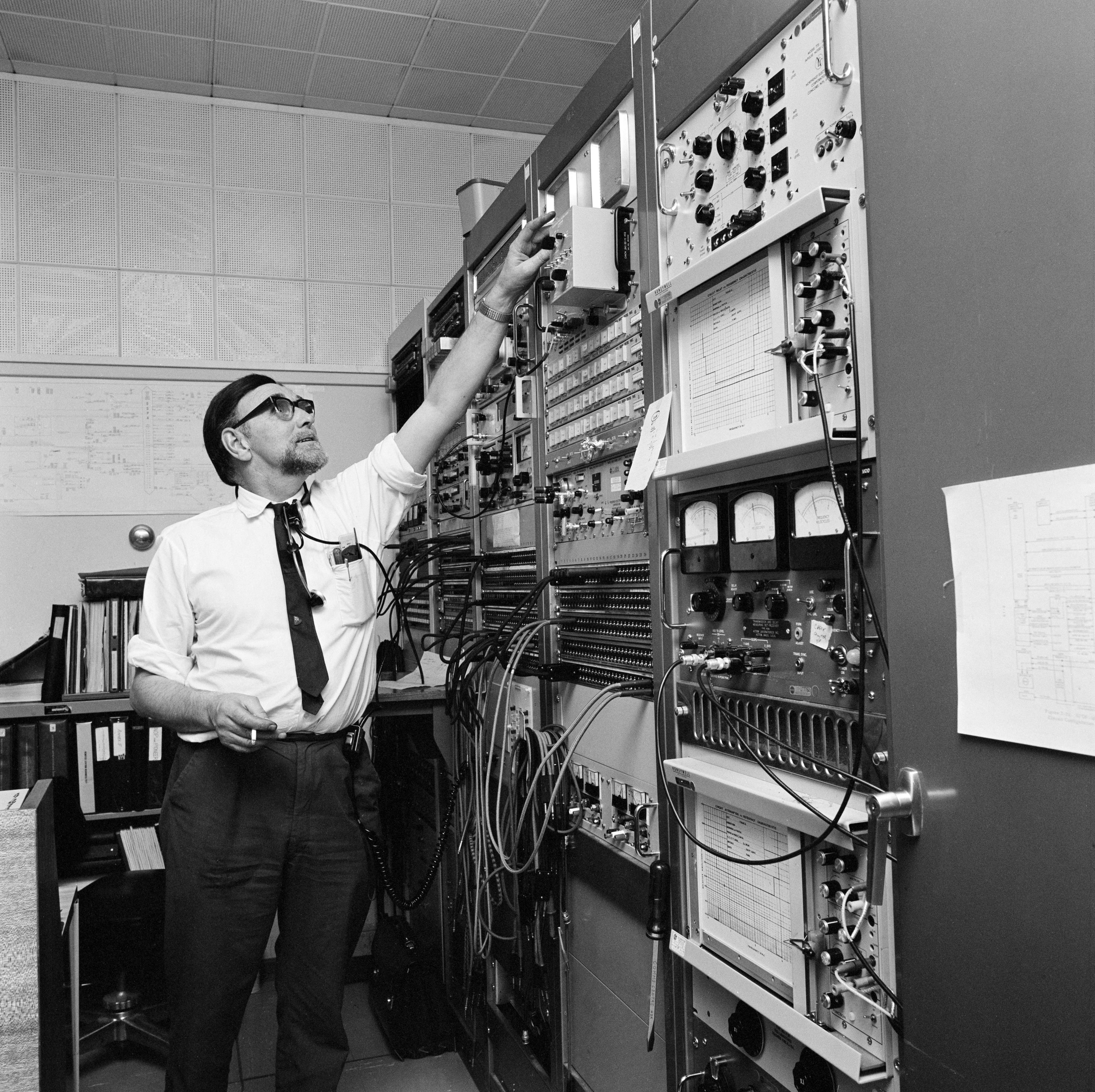

Image 11664010.
Fred Hill at the low speed testing rack in the Comms Centre.
On the wall behind his head is an earlier version of this NASCOM schematic diagram.
|
|
Image 11896252.

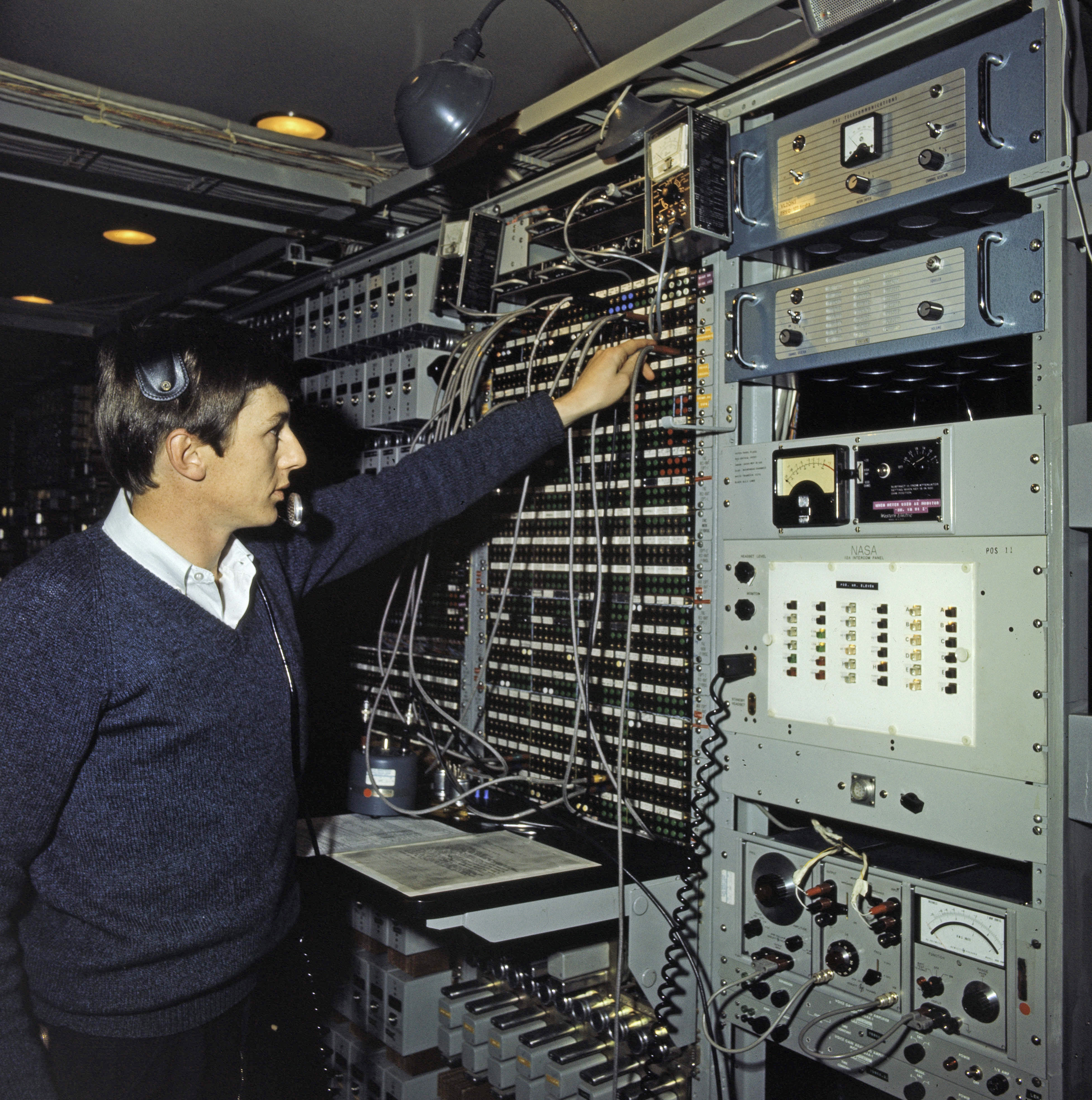

David Ralph in the Wire Room.
On the right of the photo are the coloured buttons for the station’s 112A intercom system. Each position in the station had a set (or subset) of these buttons to allow the operator to select barious station intercom loops.
|
|

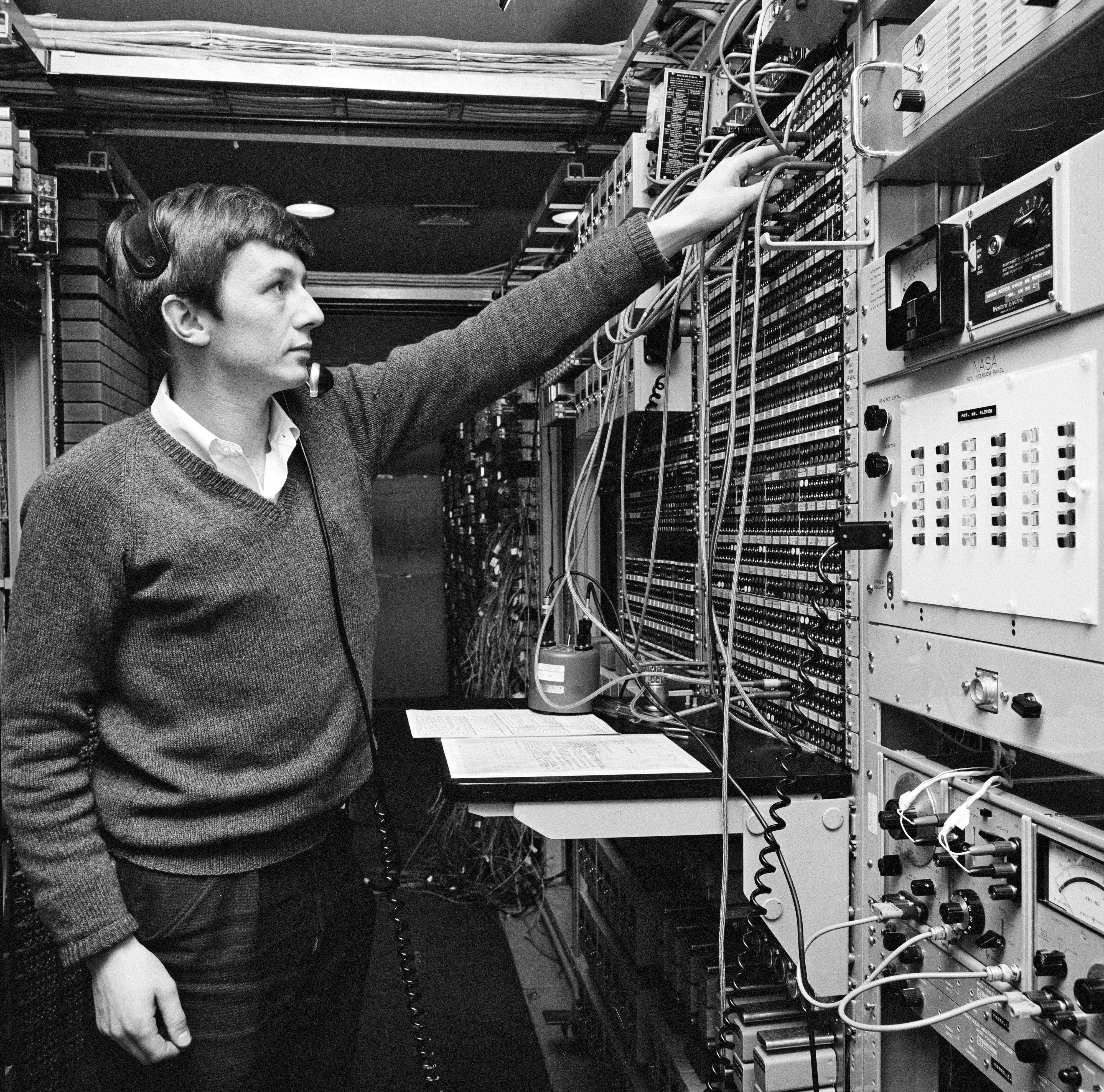

Image 11664013.
Dave Ralph in the Wire Room.
|
|

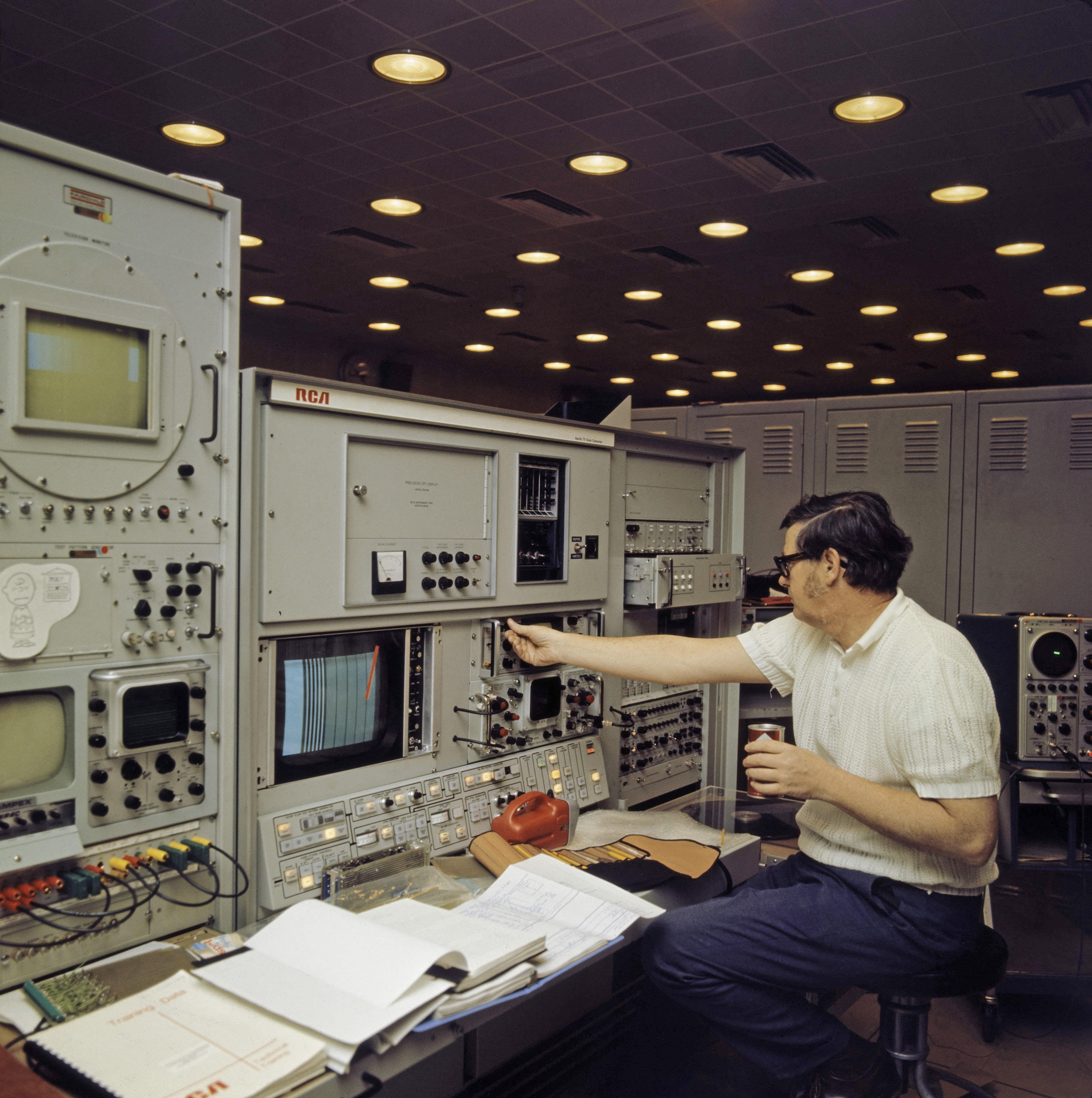

Image 11896216.
Bill Waugh makes adjustments at the RCA Scan Converter.
Note the Inverter switch above his right wrist. That switch will become important as the Apollo 11 lunar broadcast starts.
|
|
Image 11896254.

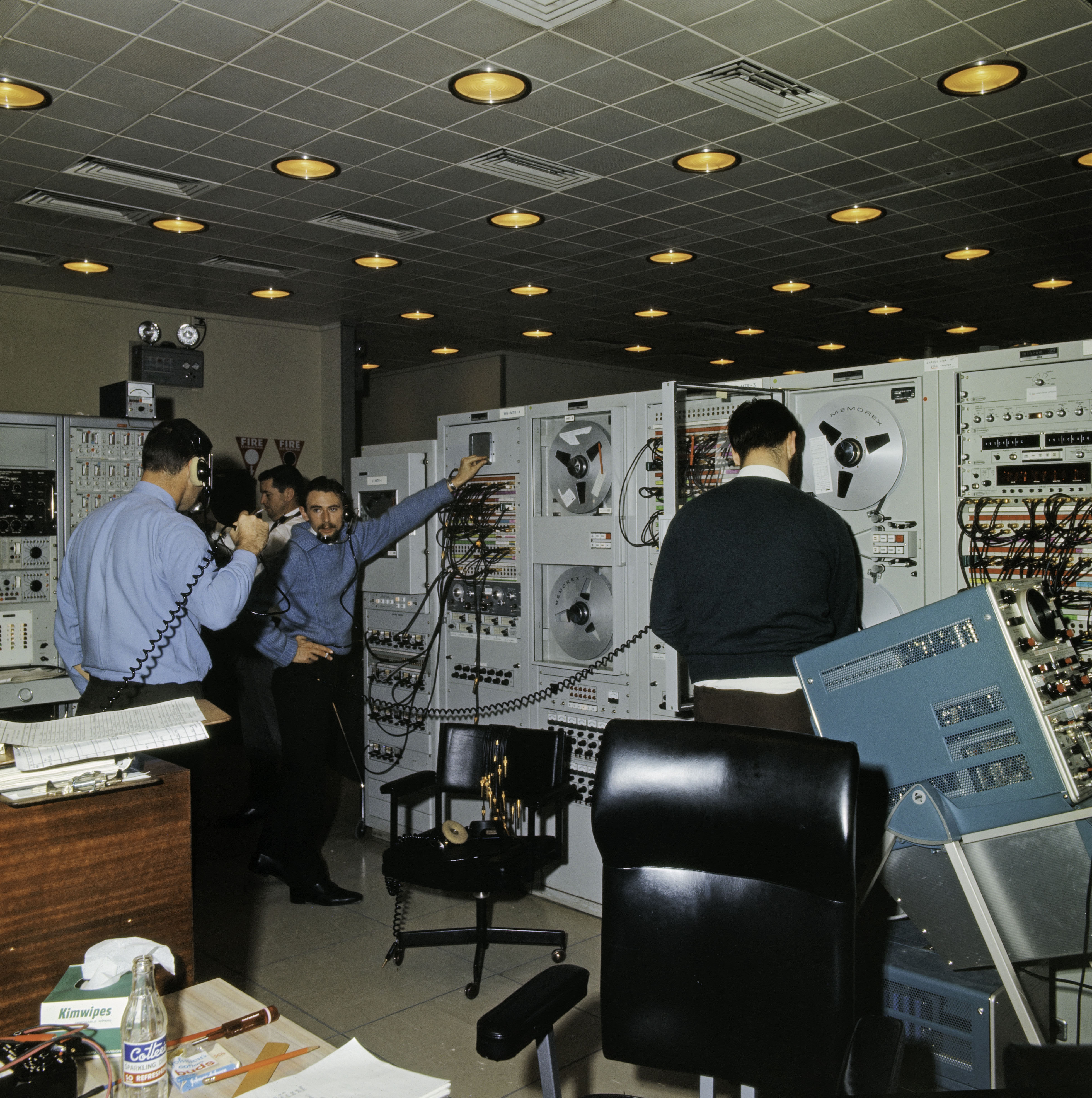

Telemetry section. Bill Perrin is at left, facing the camera, at the Recorders patch panel
.
Behind him is another photographer there for the media day.
|
|
Image 11896204.

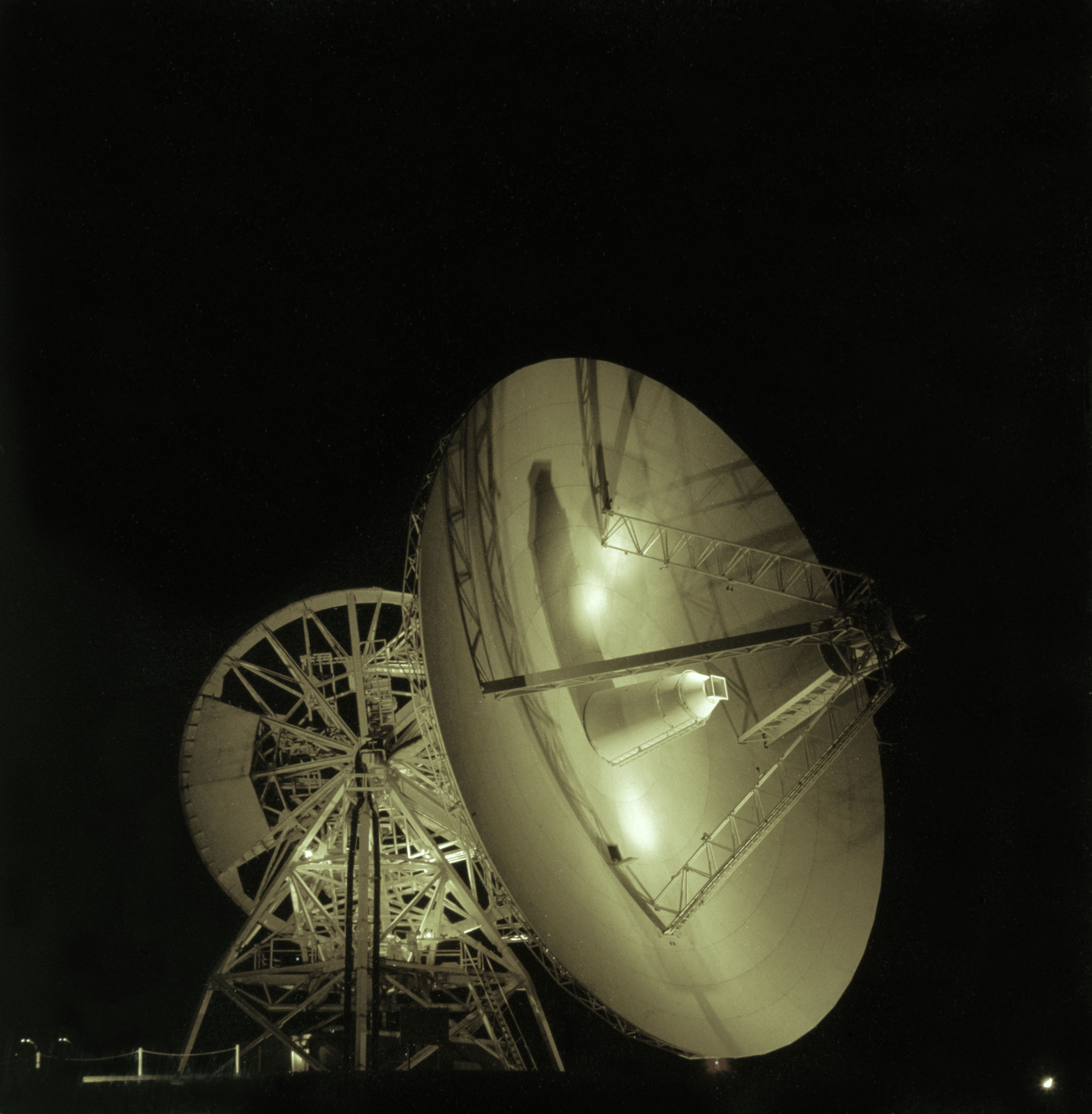

The Honeysuckle Creek 85 foot (26 metre) Unified S-Band antenna.
|
Also from just before Apollo 11 –
|
Honeysuckle Creek Deputy Director Ian Grant was photographed at the station in the run up to Apollo 11.
Photo courtesy Ian Grant.
|
|

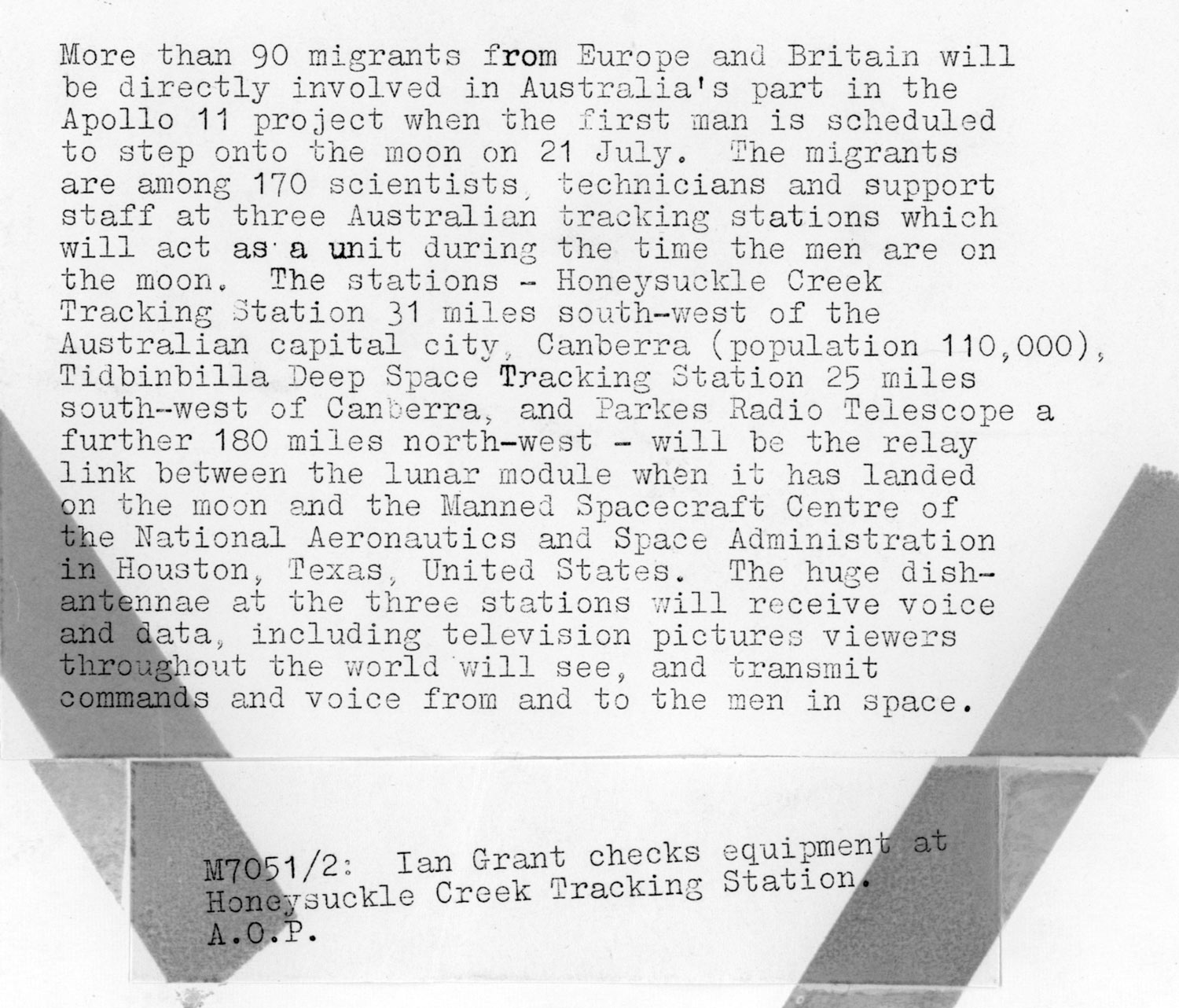

Here's the text on the back of the photo.
|
